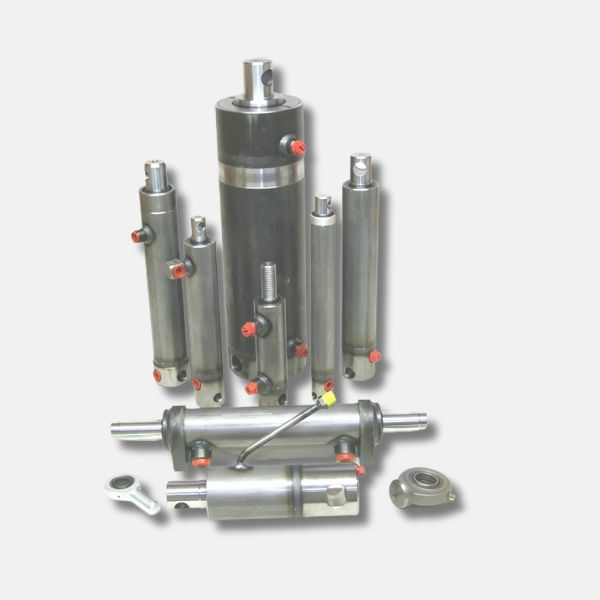

Be-spoke hydraulic cylinders / “rams”
Bespoke hydraulic cylinders are precision-engineered actuators tailored to meet specific mechanical and operational requirements. Available in a standard range or fully custom designs, these cylinders offer high performance, durability, and adaptability across a wide range of applications.
Technical Specifications:
| Parameter | Specification |
| Bore Sizes | 30 mm to 125 mm diameter |
| Rod Sizes | 20 mm to 75 mm diameter |
| Working Pressure | Up to 250 bar max |
| Temperature Range | -40°C to +100°C |
| Maximum Speed | Up to 1 m/sec |
Standard Range:
- Offered in a variety of stroke lengths and mounting styles
- Suitable for linear actuation in standard duty cycles.
- Commonly used in agricultural trailers, industrial machinery, and other applications.
- Built using high qualitystandard seals, chrome-plated rods, and smooth bore tube..
Special (Custom) Designs:
- Engineered to match unique dimensional, load, or environmental constraints.
- Options include:
- Double-acting or single-acting configurations
- Corrosion-resistant coatings (e.g., for marine or chemical environments)
- Special porting, mounts, or integrated valve blocks
- Ideal for OEM applications, harsh duty cycles, or space-constrained installations.
Key Benefits:
- Tailored performance with optimized force, speed, and fit
- High reliability at pressures up to 250 bar
- Designed for extreme temperatures and outdoor environments
- Fully serviceable and repair-friendly
Applications:
- Agricultural trailers and implements (e.g. tipping, steering, lifting)
- Construction and earthmoving equipment
- Industrial automation
- Forestry and marine sectors
